Litter Spreaders

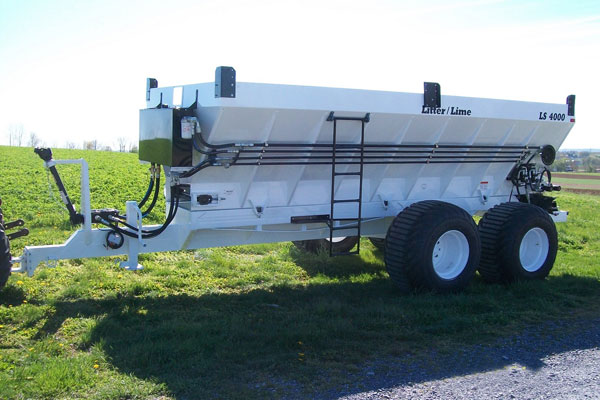

http://lancoequipment.com/images/uploads/100_3747.jpg

Farmers Talk. We Listen.

We design our spreaders by listening carefully to what farmers say, then deliver extra value by using the highest quality materials with a firm commitment to uncompromising workmanship. The family of Lanco Litter Spreaders includes six sizes ranging from 355 cubic foot capacity up to 578 cubic foot capacity. Having the right capacity spreader for your application can make all the difference. Lanco Litter Spreaders come standard with PTO drive. One look and you’ll see the difference. Lanco Litter Spreaders represent the value farmers look for.

"Consider Litter" Article

download spec sheet download owners manual

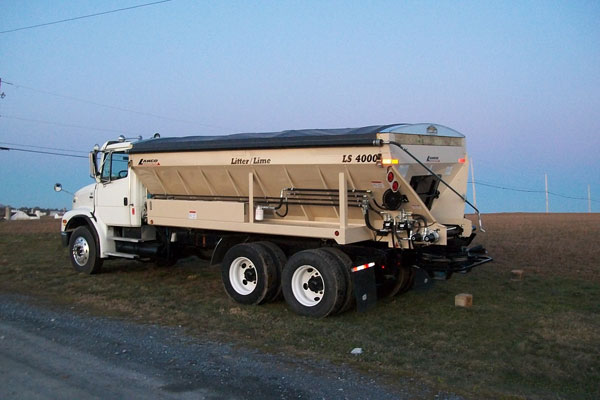

http://lancoequipment.com/images/uploads/100_3049.jpg

Farmers Talk. We Listen.

We design our spreaders by listening carefully to what farmers say, then deliver extra value by using the highest quality materials with a firm commitment to uncompromising workmanship. The family of Lanco Litter Spreaders includes six sizes ranging from 355 cubic foot capacity up to 578 cubic foot capacity. Having the right capacity spreader for your application can make all the difference. One look and you’ll see the difference. Lanco Litter Spreaders represent the value farmers look for.



download spec sheet download owners manual
World-Class Equipment & World-Class Features
  • http://lancoequipment.com/images/uploads/Litter-HeavyDutyChassis_2.jpg

    Heavy Duty Chassis

  • http://lancoequipment.com/images/uploads/features_poc.jpg

    P.O.C. Controller

  • http://lancoequipment.com/images/uploads/Litter-RemovableSpinners.jpg

    Removable Spinners

  • http://lancoequipment.com/images/uploads/Litter-AdjustableHydraulic3.jpg

    Advanced Hydraulics

  • http://lancoequipment.com/images/uploads/Litter-Spinner_2.jpg

    Adjustable Spinners

  • http://lancoequipment.com/images/uploads/features_hydraulic.jpg

    Self Contained Hydraulics

Specifications LS-3550 LS-4000 LS-4440 LS-4880 LS-5330 LS-5780
Weight 5,485 lbs. 5,920 lbs. 6,495 lbs. 7,250 lbs. 7,475 lbs. 7,865 lbs.
Payload 25,900 lbs. 25,900 lbs. 25,900 lbs. 25,900 lbs. 25,900 lbs. 25,900 lbs.
Struck 355 cu. ft. 400 cu. ft. 444 cu. ft. 488 cu. ft. 533 cu. ft. 578 cu. ft.
Overall Width 102" 102" 102" 102" 102" 102"
Overall Height 92" 92" 92" 92" 92" 92"
Overall Length 291" 315" 339" 363" 387" 411"
Lanco Manufacturing Standard Deluxe Features
Drive PTO Hydraulic Drive Self-contained Hydraulic System
Drive Check Valve Coupler Free-wheel Stopping; Longer Lasting Hydraulic Motor
Drive Hydraulic Pipe Bolted on for easy serviceability
Drive Hydraulic Tandem Gear Case With two hydraulic motor for power
Drive 12 Volt Hydraulic Dump Switch 12 Volt DC apron on/off switch which minimizes equipment wear
Drive Larger Hydraulic Tank 55 Gallon capacity
Drive Hydraulic Relief Valve For web blockage
Apron Self Cleaning Apron Chain Cleans Hopper of material every time
Apron Bar Every Other Link 88k chain and welded 3/8" x 1 1/2" x 29" bar; with self cleaning design
Apron Spaced Apron Slat 3.25" spaced for smoother spread patterns
Apron 2" Drive Shaft Heavy Duty Drive Shaft
Body Large Hopper 96" Hopper/Hopper is bolted to chassis
Body Rear Panel Sloped - No compacting or clogging
Body Steeper Sloped Hopper Side 45 Degree slope for easier flow
Body Side Access Ladder With safety non-slip grip
Body Heavy Duty Poly Floor "No Warp", "No Rust", and "No Rot" Poly Floor
Body Load View Window 8" x 12" Window for Safety
Body "Quick Latch" Endgate Easy Adjustable Endgate
Spinners Removable Spinner Attachment "Quick Attach" for easy adjustment or removal
Spinners Larger Spinner Disk Double Spinner Disk; (28", 1/4" steel plate)
Spinners More Spinner Blades (6), 10" Blades per disk (1/4" Steel Plate)
Chassis Larger Heavy Duty Jack 10,000 lb. capacity
Chassis Heavy Duty Clevis Hitch Ball Hitch / Hammer Strap
Chassis Heavy Duty Walking Beam Suspension 10 ton with 16.5 x 16.1 x 10 ply tire
Chassis Heavy Duty Hub 8 Bolt Hub
Chassis Removable Spindle Easy removable spindle for easy maintenance and less "down time"
Chassis Heavy Duty Tubular Construction Stronger Construction
Lanco Manufacturing Options
Tires T95 - Flotation Tires 19L x 16.1 x 10 Ply Tires - less compaction
Tires T87 - Flotation Tires 21.5L x 16.1 x 10 Ply Tires - less compaction
Tires T60 - Trelleborg Tires 520-50-17-20.5 Wide (for 8 bolt) - less compaction
Tires T90 - Aircraft Tires Aircraft Tires (37-14 x 15 22 Ply)
Body B60 - Transport Light Package Brakes and turning signals for safety
Body B52 - Rollover Tarp w/Manual Crank manual Shur-lok brand; keeps material inside hopper
Body B51 - Mesh Tarp w/Manual Crank Front to back; manual or electric; Shur-lok brand; keeps material inside hopper
Body B50 - Flap tarp w/Bungee eyelets Keeps material inside hopper
Body B31 - Hydraulic Endgate Easy adjustment from the tractor seat
Body B81 - Heavy Duty V Baffle For lime spreading; bolted onto side panel; less stress on web chain
Body B10 - 15 Ton Heavy Duty Chassis 15 Ton Heavy Chassis for greater material capacity
Body B90 - Surge Brakes / 2 Wheel 2 Wheel Surge brakes
Body B40 - Extension Support Posts To attach side extension
Body B95 - Safety Chain Safety Tow Chain
Drive D30 - Constant Velocity Shaft less stress on PTO shaft while turning
Drive D11 - Hydraulic Pump "540 RPM" Hydraulic pump in lieu of "1000 RPM"
Conveyor C20 - Cross Conveyor Attachment (L or R) with two-way discharge; used to spread material out to the side of spreader; used to feed livestock; used to spread sand or shavings in free stalls
Conveyor C30 - Discharge Deflector (2nd side) Material deflector for conveyor attachment
Conveyor C40 - Hopper Chute Used for grain unloading
Remote R40 - Raven or Midtech Elctronic Variable Rate Control Regulates material according to the ground speed
Remote R20 - GPS Electronic Variable Rate Control Regulates material according to the ground speed by using satellites
Remote R50 - POC Controller designed by Lanco to be more user-friendly; regulates material according to the ground speed without the use of a press wheel; less expense than Raven and Midtech; also can be used to unload material while stationary; no wheel slippage and low maintenance of gear box, chains and sprockets
Apron A30 - Self-Cleaning Apron / 1" Slat Spacing Slat welded every link for more consistent flow, finer material
Apron A40 - Self-Cleaning Double Apron 4 Runs of 88K chaine with 3.25" slat spacing
Apron A50 - Double Gear Box On right side apron drive
Download Shopping List

Compare Our Litter Spreaders!

We invite you to download a shopping list to compare the features of our Litter Spreaders with other manufacturers.
